Manfrotto Wind-Up Stand (Silver Or Black)

50 DT / Day (ex VAT)

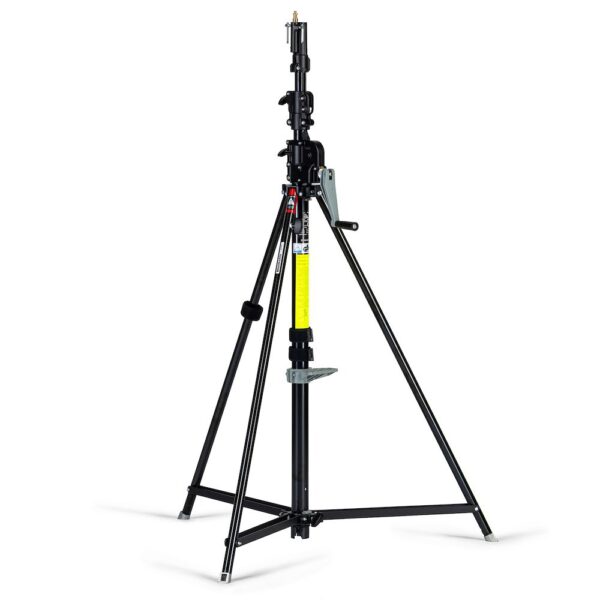

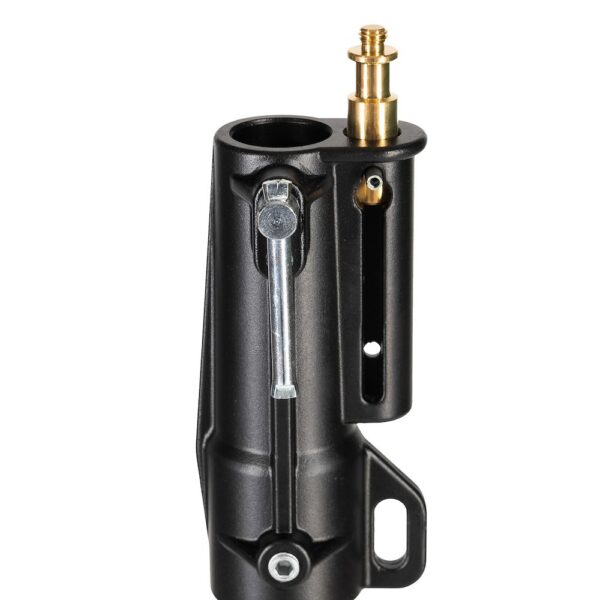

The 12′ Manfrotto Wind-Up Stand is a black, chrome-plated steel stand with geared column and one leveling leg. Rugged and heavy duty, it combines the strength, stability and portability that are required by today’s demanding professionals. Like all Bogen cine-style stands, it features a Universal Mount which has both a 1-1/8″ Junior and 5/8″ Baby receiver as well as a 5/8″ Baby stud.

Keys Features
Specs

Chrome-plated Steel Construction
Elevating sections rise 1.75″ with each handle turn
Leveling leg allows stable positioning of load on uneven terrain
Three Sections and two risers

Specs

Stand Type	1 x Crank & Wind-Up Stand with Combo/Universal Head

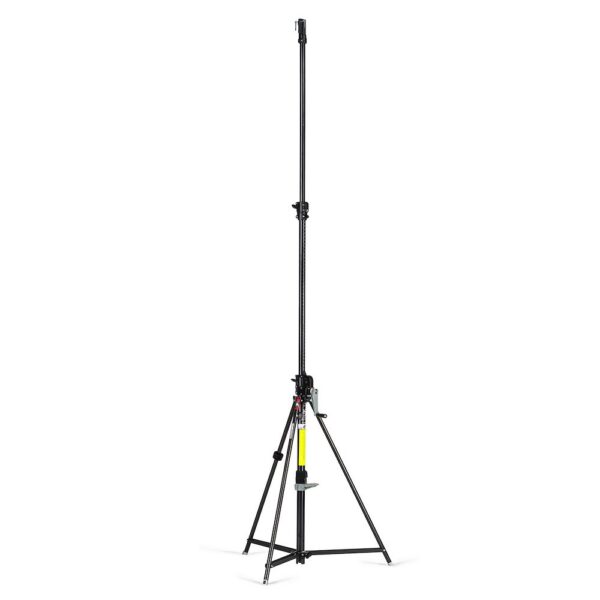

Maximum Working Height	12.1′ / 370 cm
Minimum Working Height	65.7″ / 167 cm
Load Capacity	66.14 lb / 30 kg
Stand/Column Top Mount	5/8″ Receiver, 1-1/8″ Receiver
Wheels	Optional
Air Cushioned	No
Leveling Leg	Yes
Weight	47.84 lb / 21.7 kg

Maximum Working Height	12.1′ / 370 cm
Minimum Working Height	65.7″ / 167 cm
Load Capacity	66.14 lb / 30 kg

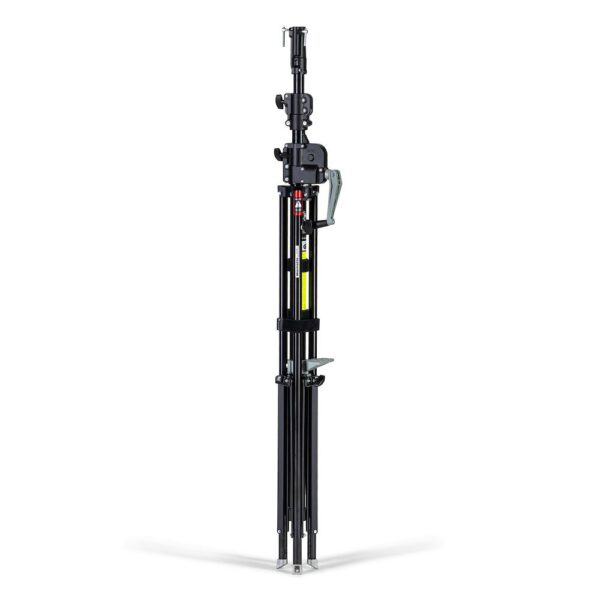

Closed Length	71.3″ / 181 cm

Mounting

Stand/Column Top Mount	5/8″ Receiver, 1-1/8″ Receiver
Included Adapter	1x 5/8″ Stud with Reversible 1/4″-20 & 3/8″-16 Male Screw

Features

Accepts Second Riser	No
Wheels	Optional
Air Cushioned	No
Detachable Base	No
Leveling Leg	Yes
Reverse Legs	No
Interlocking Design	No

General

Column Diameter	1.5″ / 38 mm 1.77″ / 45 mm 2.17″ / 55 mm
Number of Sections	3
Footprint Diameter	50.39″ / 128 cm
Leg Shape	Round: 30 mm
Finish	Chrome
Material	Steel
Weight	47.84 lb / 21.7 kg
